Kinder Morgan Carteret Terminal

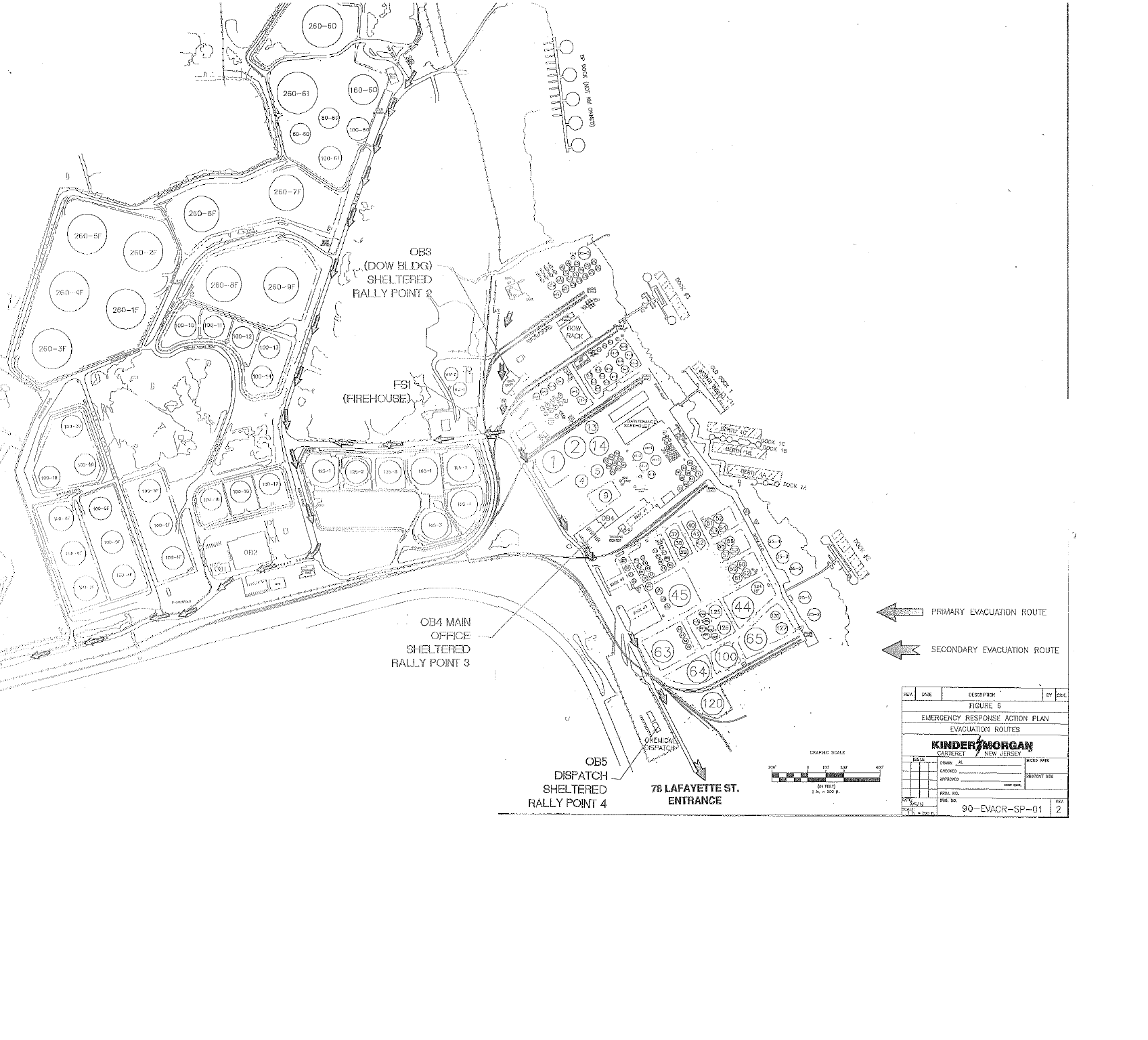

Interactive Site Map
Using the interactive map, click on Tank 100-1, 100-4, 100-7 or use Cntl-F and the tank number to find tank particulars
Tank Farm Valve & Actuator Install DB
| "Tank 100-7" |
| 100-7 |
|
Front |
SAExC16.1-FA16/21B |
A092023 |
A0920230201 |
AMExC02.1 |
A092023 |
A0920230401 |
|
|
|
Velan |
F22-0064C-02TY |
20 |
150 |
Gate |
| 100-7 |
|
Side |
SAExC14.5-FA14/41W2111 |
A132777 |
5113UD00299 |
TPEx02.1 |
A132777 |
5113UA00299 |
|
|
|
Velan |
F20-0064C-02TY-B |
16 |
150 |
Gate |
| "Tank 100-4" |
| 100-4 |
|
IN/OUT |
SAExC14.5-FA14/41W2111 |
A132777 |
0314UD000191 |
TPEx02.1 |
A132777 |
0314UA000191 |
|
|
|
Velan |
F20-0064C-02TY-B |
16 |
150 |
Gate |
| "Tank 100-1" |
| 100-1 |
|
IN/OUT |
SAMFM14.5/6WBP |
A050491 |
A0504910203 |
AM0 |
A050491 |
A0504910403 |
|
|
|
Velan |
F20-0064C-02TY-B |
16 |
150 |
Gate |
Valve Actuator Couplings
| Size |
Pressure Class |
Model |
Auma Actuator |
Flange |
Flange Thickness |
Mounting Hardware |
| 20" |
150# |
F22-0064C-02TY |
Auma SAExC16.1 |
FA16 |
1.250" |
(4)3/4"-10x2-3/4" |
Velan Stem & Threading Info
| Valve Model |
Size |
Class |
Type |
Body Mat'l | Wedge | Seat | Stem | Stroke | Turns | Maj. Dia | Min. Dia | Pitch | Lead | Thread Form |
| F22-0064C-2TY-B |
20" |
150# |
CS Gate |
A105, WCB |
13CR or CA15 |
Stellite 6 |
13CR |
19.875 |
40 |
2.000 |
1.750 |
0.250 |
0.500 | Acme 2GLH |
